GP Series

GP88

Multi-Purpose Handling Robot with 88 kg Payload

product_overview

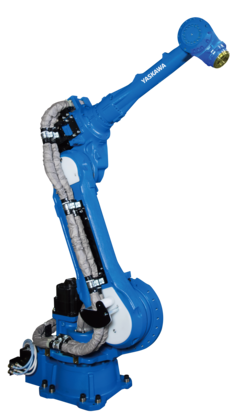

The GP88 is a compact 6-axis industrial robot with 88 kg payload, 2236 mm reach and excellent repeatability of +/- 0.03 mm. Equipped to handle high payloads for heavy part processing, the powerful six-axis GP88 robot increases productivity for a wide selection of tasks. While high moment and inertia ratings support large and heavy applications, exceptionally quick axis speeds and acceleration capabilities reduce cycle time. The compact design enables high-density robot placement in workcells. Pre-wired with sognal and pneumatic lines, the high-speed GP88 offers simple installation, easy operation and minimal maintenance for increased production output.

A version with high IP67 (sust and liquid proof) protection class is available for jobs in harsh environments.

The GP88 is perfect for a wide range of applications, including machine tending, material handling, material removal, assembly, additive manufacturing, dispensing and grinding/polishing.

product_technical_details

Number of Axis
6

Payload
88 kg

Max Working Range
2236 mm

Repeatability
0.03 mm

Weight
630 kg

Power Supply
4 kVA

Maximum Speed S Axis
170 °/s

Maximum Speed L Axis
140 °/s

Maximum Speed U Axis
160 °/s

Maximum Speed R Axis
230 °/s

Maximum Speed B Axis
230 °/s

Maximum Speed T Axis
350 °/s

Mounting Options
Ceiling, Wall, Floor

product_downloads

downloadcenter_name
Flyer Robot GP88 Handling & General Applications with the GP-series Data sheet \| English	Data sheet	English
Flyer Robot GP88 Handling & Allgemeine Applikationen mit der GP-Serie Data sheet \| German	Data sheet	German
GP88 2D CAD/CAE \|	CAD/CAE
GP88 3D CAD/CAE \|	CAD/CAE
Brochure GP Series Brochures & Catalogues \| English	Brochures & Catalogues	English
Broschüre GP-Serie Brochures & Catalogues \| German	Brochures & Catalogues	German
