GP Series

GP7

Small & agile 6-Axis-Robot with 7 kg Payload

product_overview

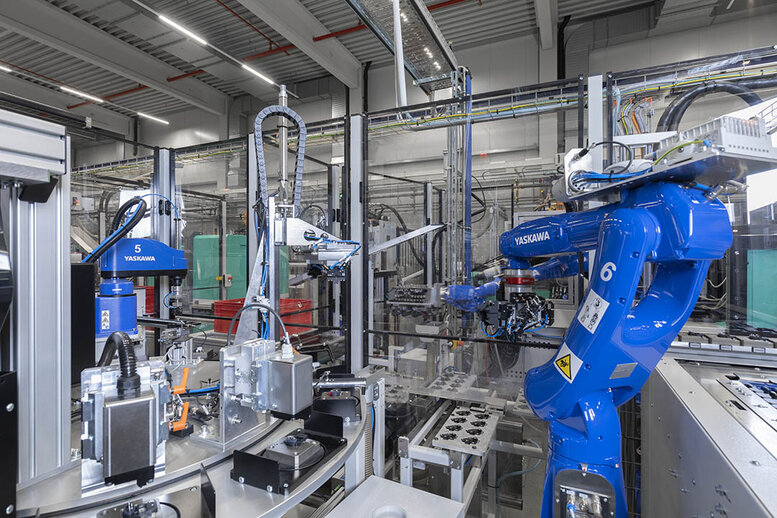

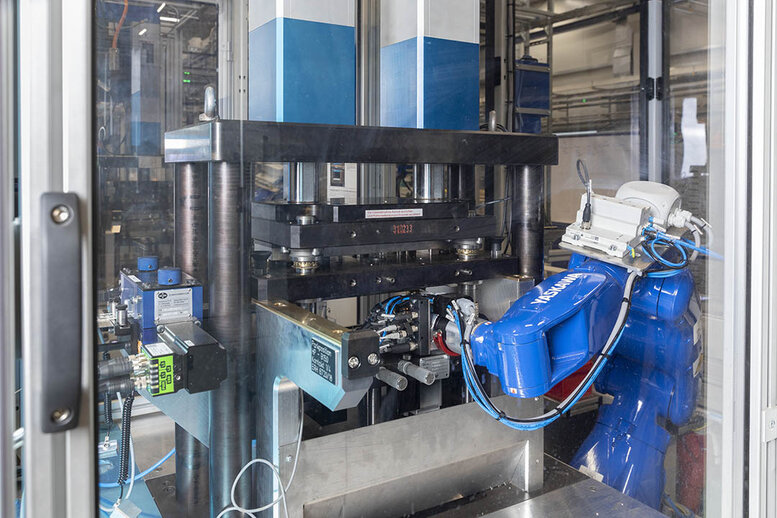

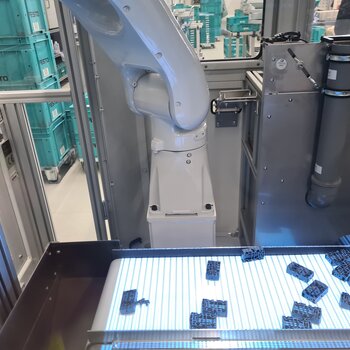

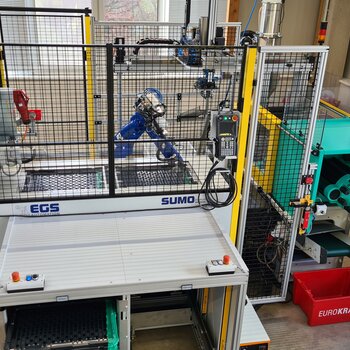

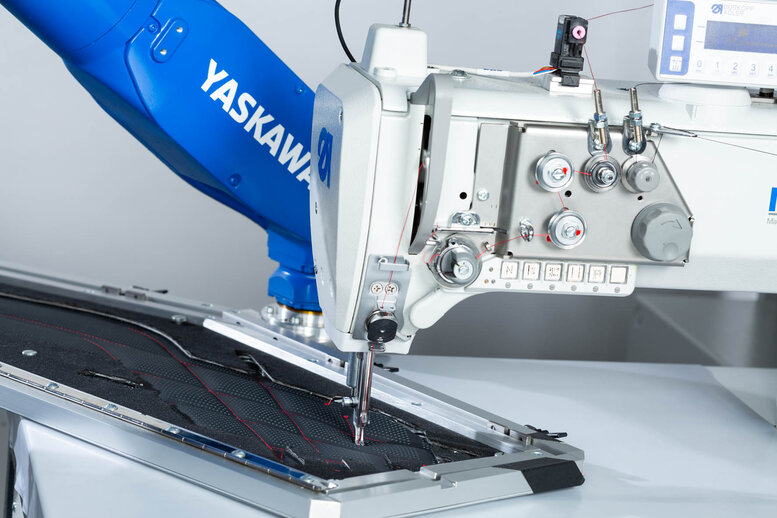

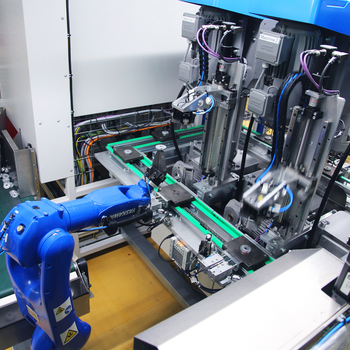

The MOTOMAN GP7, one of our most successful robot models ever, is an extremely agile, compact and universal robot with 7 kg payload, 927 mm reach and superior repeatability of +/- 0.01 mm. Our customers appreciate the performance of the GP7 for use in all kinds of applications, e.g. handling, assembly, pick&place (often in combination with 3D machine vision) and quality inspection.

High IP67 rating (dust and liquid protection) is standard, allowing the robot to work in harsh environments. The optional anti-corrosive coating (ACC) of the GP7 protects the robot in corrosive atmosphere such as acids, alkali and vapors. A GP7 food grade grease version and CR5 cleanroom class version is also available.

product_technical_details

Number of Axis
6

Payload
7 kg

Max Working Range
927 mm

Repeatability
0.01 mm

Weight
37 kg

Power Supply
1 kVA

Maximum Speed S Axis
375 °/s

Maximum Speed L Axis
315 °/s

Maximum Speed U Axis
410 °/s

Maximum Speed R Axis
550 °/s

Maximum Speed B Axis
550 °/s

Maximum Speed T Axis
1000 °/s

Mounting Options
Ceiling, Wall, Floor

product_downloads

downloadcenter_name
Flyer Robot GP7 Handling & General Application with the GP-Series Data sheet \| English	Data sheet	English
Flyer Robot GP7 Handling & Allgemeine Applikationen mit der GP-Serie Data sheet \| German	Data sheet	German
Flyer Robot GP7 GP8 ACC Handling & General Application in corrosive Environments Data sheet \| English	Data sheet	English
Flyer Robot GP7 GP8 ACC Handling & Allgemeine Applikationen in korrosiven Umgebungen Data sheet \| German	Data sheet	German
GP7 2D CAD/CAE \|	CAD/CAE
GP7 3D CAD/CAE \|	CAD/CAE
Serie GP Brochures & Catalogues \| Spanish	Brochures & Catalogues	Spanish
Brochure GP Series Brochures & Catalogues \| English	Brochures & Catalogues	English
Broschüre GP-Serie Brochures & Catalogues \| German	Brochures & Catalogues	German
