GP Series

GP600

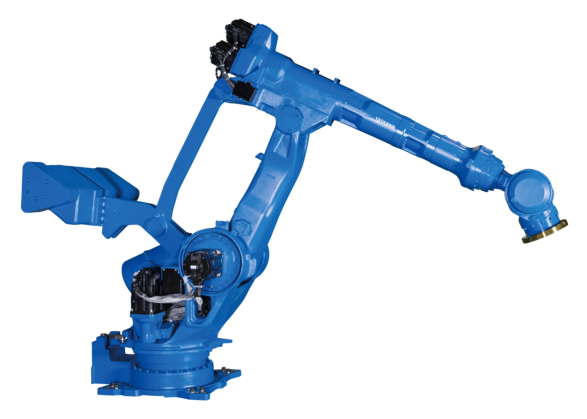

Heavy Payload 6-Axis Robot

product_overview

The powerful MOTOMAN GP600 handling robot provides an impressive payload of 600 kg and a maximum reach of 2,942 mm. Due to its parallel link design, the outstanding repeatability is better than +/- 0.1 mm.

Designed with extremely fast axis speeds and parallel-link construction to expertly perform heavy-payload tasks, the six-axis GP600 is ideal for heavy part handling, machine and press tending, as well as “jigless” applications. Engineered for simple installation, easy operation and minimal maintenance, this robot features a wide work envelope, along with high moment and inertia ratings for the accommodation of large, heavy parts. A streamlined upper arm provides easy access to parts in tight spaces, and a reduced interference design allows the robot to be placed closer to workpieces and machines, optimizing floorspace. Equipped with heavy-duty bearings for smooth arm rotation, the GP600 is a smart choice to fulfill a variety of heavy-payload needs.

product_technical_details

Number of Axis
6

Payload
600 kg

Max Working Range
2942 mm

Repeatability
0.1 mm

Weight
3035 kg

Power Supply
7 kVA

Maximum Speed S Axis
82 °/s

Maximum Speed L Axis
82 °/s

Maximum Speed U Axis
82 °/s

Maximum Speed R Axis
80 °/s

Maximum Speed B Axis
80 °/s

Maximum Speed T Axis
162 °/s

Mounting Options
Floor
