GP Series

GP50

Multi-Purpose Handling robot with 50 kg Payload

product_overview

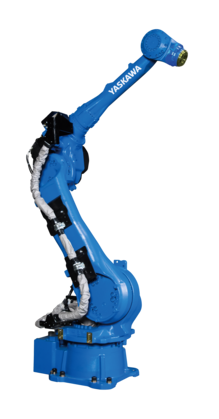

The MOTOMAN GP50 is a highly versatile 6-axis industrial robot with 50 kg payload, 2.061 mm reach, and an outstanding repeatability of +/- 0.03 mm.

The GP50 robot is offering a perfectly tuned payload / speed / wrist allowable moment combination, for impressive speed and acceleration performance. The small footprint, slim arm design allows for minimum installation space and minimizes interference with peripheral devices.

A version with high IP65/67 (dust & liquid protection) is available, for operation in harsh environments.

The GP50 is perfect for a wide range of applications, including machine tending, material handling, material removal, assembly, additive manufacturing, dispensing and grinding/polishing.

product_technical_details

Number of Axis
6

Payload
50 kg

Max Working Range
2061 mm

Repeatability
0.03 mm

Weight
570 kg

Power Supply
4 kVA

Maximum Speed S Axis
180 °/s

Maximum Speed L Axis
187 °/s

Maximum Speed U Axis
187 °/s

Maximum Speed R Axis
250 °/s

Maximum Speed B Axis
250 °/s

Maximum Speed T Axis
360 °/s

Mounting Options
Ceiling, Wall, Floor

product_downloads

downloadcenter_name
Flyer Robot GP50 Handling & General Applications with the GP-series Data sheet \| English	Data sheet	English
Flyer Robot GP50 Handling & Allgemeine Applikationen mit der GP-Serie Data sheet \| German	Data sheet	German
GP50 2D CAD/CAE \|	CAD/CAE
GP50 3D CAD/CAE \|	CAD/CAE
Brochure GP Series Brochures & Catalogues \| English	Brochures & Catalogues	English
Broschüre GP-Serie Brochures & Catalogues \| German	Brochures & Catalogues	German
