GP Series

GP35L

Multi-Purpose Handling Robot with 2.5 m Reach

product_overview

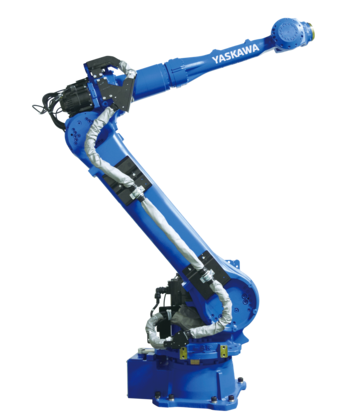

The MOTOMAN GP35L is a highly versatile 6-axis industrial robot with a 35 kg payload, extended reach (2.538 mm), and outstanding repeatability of +/- 0.07 mm.

The GP35L robot is offering a perfectly tuned payload/speed/wrist allowable moment combination, for impressive speed and acceleration performance. The small footprint, slim arm design allows for minimum installation space and minimize interference with peripheral devices.

A version with high IP65/67 (dust & liquid protection) is available, for operation in harsh environments.

The GP35L is perfect for a wide range of applications, perfect for machine tending, material handling, material removal, assembly, additive manufacturing or dispensing.

product_technical_details

Number of Axis
6

Payload
35 kg

Max Working Range
2538 mm

Repeatability
0.07 mm

Weight
600 kg

Power Supply
4 kVA

Maximum Speed S Axis
180 °/s

Maximum Speed L Axis
140 °/s

Maximum Speed U Axis
178 °/s

Maximum Speed R Axis
250 °/s

Maximum Speed B Axis
250 °/s

Maximum Speed T Axis
360 °/s

Mounting Options
Ceiling, Wall, Floor
