GP Series

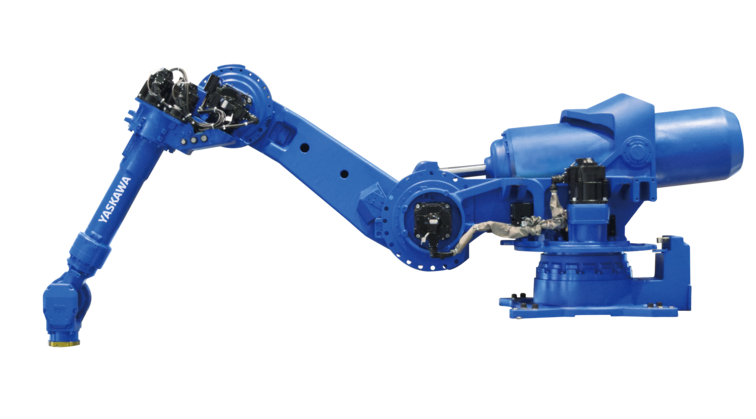

GP165R

Shelf mounted robot with high payload

product_overview

The flexible, shelf-mounted MOTOMAN GP165R robot provides extended reach of 3.134 mm, a payload of 165 kg and an outstanding repeatability of better than +/- 0.05 mm. A streamlined upper arm provides easy access to parts in confined spaces. As being a shelf-type robot, the motion range is extended for working below the robot base level, allowing to the robot to be installed on a raised steel structure to save floor space. Latest Sigma7 Servo Motor technology and high inertia wrist allows fast axis speed and acceleration to decrease cycle time and optimize production output.

The MOTOMAN GP165R is well suited for spot welding, handling and (multi) machine tending.

product_technical_details

Number of Axis
6

Payload
165 kg

Max Working Range
3143 mm

Repeatability
0.05 mm

Weight
1760 kg

Power Supply
5 kVA

Maximum Speed S Axis
105 °/s

Maximum Speed L Axis
105 °/s

Maximum Speed U Axis
105 °/s

Maximum Speed R Axis
175 °/s

Maximum Speed B Axis
150 °/s

Maximum Speed T Axis
240 °/s

Mounting Options
Shelf-Mounted
