Highest quality coupled with outstanding performance has a name: MOTOMAN
GP FGG Series
GP4 FGG
Compact Handling-Robot with 4 kg Payload for the Food Industry
product_overview

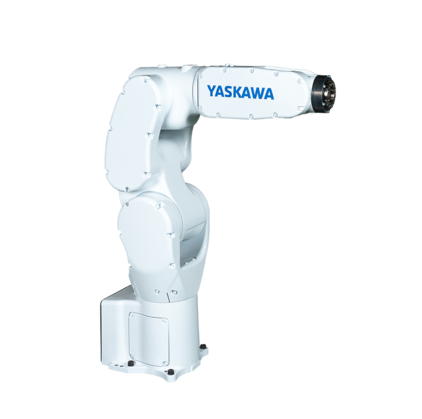

The MOTOMAN GP4 FGG is a compact and agile 6-axis robot with 4 kg payload, 550 mm reach and outstanding repeatability of +/- 0.01 mm.
Due to latest Sigma-7 Servo Technology, the MOTOMAN GP4 FGG provides excellent axis speeds and accelerations. Specifications like high IP65/67 (dust/liquid proof) protection rating, food grade grease lubrication in all joints allows the robot to be used in certain food related applications.
It’s small footprint and compact design allows installation even in the tightest spaces.
product_technical_details
- Number of Axis
- 6
- Payload
- 4 kg
- Max Working Range
- 550 mm
- Repeatability
- 0.01 mm
- Weight
- 28 kg
- Power Supply
- 1 kVA
- Maximum Speed S Axis
- 465 °/s
- Maximum Speed L Axis
- 465 °/s
- Maximum Speed U Axis
- 525 °/s
- Maximum Speed R Axis
- 565 °/s
- Maximum Speed B Axis
- 565 °/s
- Maximum Speed T Axis
- 1000 °/s
- Mounting Options
- x No
- Further Specifications
- x No
product_downloads
| downloadcenter_name | |||
| GP4 FGG 2D CAD/CAE | | CAD/CAE | ||
| GP4 FGG 3D CAD/CAE | | CAD/CAE | ||
|
Brochure Robots GP-FGG-Series
Handling & General Application for the Food Industry Brochures & Catalogues | English |
Brochures & Catalogues | English | |
|
Flyer Robots GP-FGG-Serie
Handling & Allgemeine Applikationen für den Lebensmittelbereich Brochures & Catalogues | German |
Brochures & Catalogues | German |
