GP FGG Series

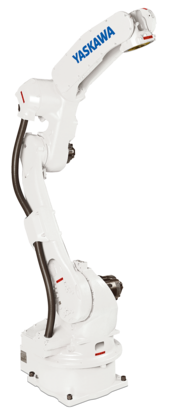

GP25 FGG

6-axis Robot with 25 kg Payload for the Food Industry

Yaskawa Ireland Robotics Yaskawa Robots Food and Lab Automation GP FGG Series GP25 FGG

product_overview

The GP25 FGG is a highly versatile 6-axis robot with 25 kg payload, 1730 mm reach and outstanding repeatability of +/- 0.02 mm. Specifications like high IP65/67 (dust/liquid proof) protection rating, food grade grease lubrication in all joints allows the robot to be used in certain food related applications.

You will achieve high transfer rates with this extremely fast and efficient GP25 FGG robot, which offers a perfectly tuned payload / speed / wrist allowable moment in it's class. Designed with our Sigma-7-Servo Motor Generation, the GP25 FGG offers improved acceleration/deceleration control. The small footprint and slim arm design allows for minimum installation space and minimizes interference with peripheral devices. Installation is quick and efficient - media cables are guided through the hollow arm and wrist structure.

product_technical_details

  • Number of Axis
  • 6
  • Payload
  • 25 kg
  • Max Working Range
  • 1730 mm
  • Repeatability
  • 0.02 mm
  • Weight
  • 265 kg
  • Power Supply
  • 2 kVA
  • Maximum Speed S Axis
  • 210 °/s
  • Maximum Speed L Axis
  • 210 °/s
  • Maximum Speed U Axis
  • 265 °/s
  • Maximum Speed R Axis
  • 420 °/s
  • Maximum Speed B Axis
  • 420 °/s
  • Maximum Speed T Axis
  • 885 °/s
  • Mounting Options
  • x No
  • Further Specifications
  • x No
