SP Series

SP165

Compact Spot Welding & Handling Robot

Yaskawa Ireland Robotics Yaskawa Robots Welding & Cutting SP Series SP165

product_overview

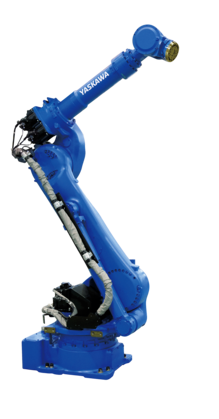

The MOTOMAN SP165 is a high-performance standard spot welding and handling robot with 165 kg payload (including C-adapter). It is suitable for a wide range of common spot-welding guns and technologies, especially also for servo-controlled welding guns with robot-assisted gun alignment.

Its slim design does not require a mechanical counterbalance and allows low moving masses as well as higher accelerations and speeds. The stable wrist is particularly suitable for small and fast positioning movements, as are common in spot welding applications.

The MOTOMAN SP165 is controlled by the compact and powerful MOTOMAN YRC1000 controller and features the latest Yaskawa Sigma7 servo drive technology, is state-of-the-art in terms of dynamics and energy efficiency, and enables outstanding cycle times.

  • Versatile application possibilities
  • Slim design enables small footprint
  • High dynamics and repeatability
  • High energy efficiency

product_technical_details

  • Number of Axis
  • 6
  • Payload
  • 165 kg
  • Max Working Range
  • 2702 mm
  • Repeatability
  • 0.05 mm
  • Weight
  • 1020 kg
  • Power Supply
  • 5 kVA
  • Maximum Speed S Axis
  • 125 °/s
  • Maximum Speed L Axis
  • 115 °/s
  • Maximum Speed U Axis
  • 125 °/s
  • Maximum Speed R Axis
  • 182 °/s
  • Maximum Speed B Axis
  • 175 °/s
  • Maximum Speed T Axis
  • 265 °/s
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
downloadcenter_label_processing downloadcenter_label_filter_entire_table downloadcenter_showing _START_ – _END_ / _TOTAL_ downloadcenter_total_records downloadcenter_pagination_filtered_from _MAX_ downloadcenter_total_records downloadcenter_no_records downloadcenter_no_records First Last downloadcenter_sort_ascending downloadcenter_sort_descending

product_downloads

downloadcenter_name
Flyer Robot SP165
Spot welding & handling with the SP series Data sheet | English 		Data sheet English
Flyer Robot SP165
Punktschweißen & Handling mit der SP-Serie Data sheet | German 		Data sheet German
SP165 2D CAD/CAE | CAD/CAE
SP165 3D CAD/CAE | CAD/CAE
MOTOMAN Punktschweißsysteme
MOTOMAN SP-Serie und YRC1000 Robotersteuerung Brochures & Catalogues | German 		Brochures & Catalogues German
MOTOMAN Spot Welding Solutions
MOTOMAN SP-series and YRC1000 robot controller Brochures & Catalogues | English 		Brochures & Catalogues English
