SP Series

SP165-105

Compact Spot Welding & Handling Robot with High Reach

Yaskawa Ireland Robotics Yaskawa Robots Welding & Cutting SP Series SP165-105

product_overview

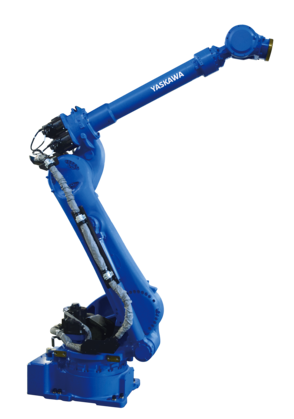

The MOTOMAN SP165-105 is a spot welding and handling robot with a long reach of over 3 meters. This robot is perfect for handling tasks related to spot welding, e.g. workpiece handling with stationary welding gun. It can be used for a wide range of common spot welding guns and technologies, especially also for servo-controlled welding guns with robotassisted gun balance.

Its slim design does not require mechanical counterweight compensation and allows low moving masses as well as higher accelerations and speeds. The stable wrist is particularly suitable for small and fast positioning movements, as are common in spot welding applications.

The MOTOMAN SP165-105 is controlled by the compact and powerful MOTOMAN YRC1000 controller and features the latest Yaskawa Sigma7 servo drive technology, is state-of-the-art in terms of dynamics and energy efficiency, and enables outstanding cycle times.



  • Versatile application possibilities
  • Long reach but small footprint
  • High dynamics and repeatability
  • High energy efficiency

product_technical_details

  • Number of Axis
  • 6
  • Payload
  • 105 kg
  • Max Working Range
  • 3058 mm
  • Repeatability
  • 0.05 mm
  • Weight
  • 1090 kg
  • Power Supply
  • 5 kVA
  • Maximum Speed S Axis
  • 125 °/s
  • Maximum Speed L Axis
  • 113 °/s
  • Maximum Speed U Axis
  • 125 °/s
  • Maximum Speed R Axis
  • 182 °/s
  • Maximum Speed B Axis
  • 175 °/s
  • Maximum Speed T Axis
  • 265 °/s
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
