SG Series

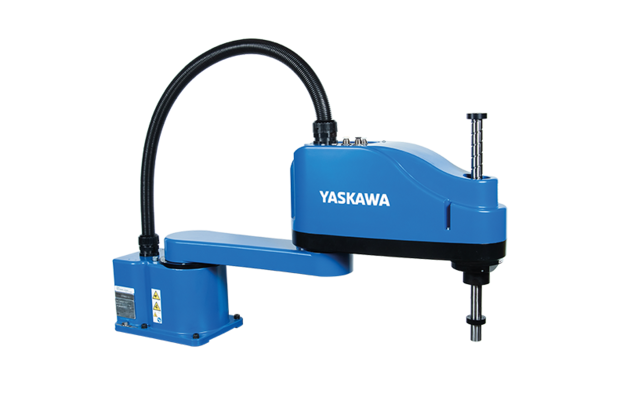

SG650

High speed scara robot

Yaskawa Ireland Robotics Yaskawa Robots Pick & Place SG Series SG650

product_overview

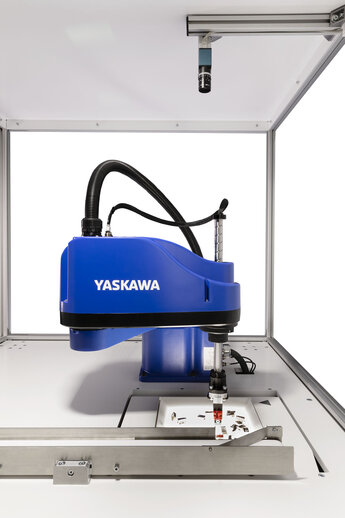

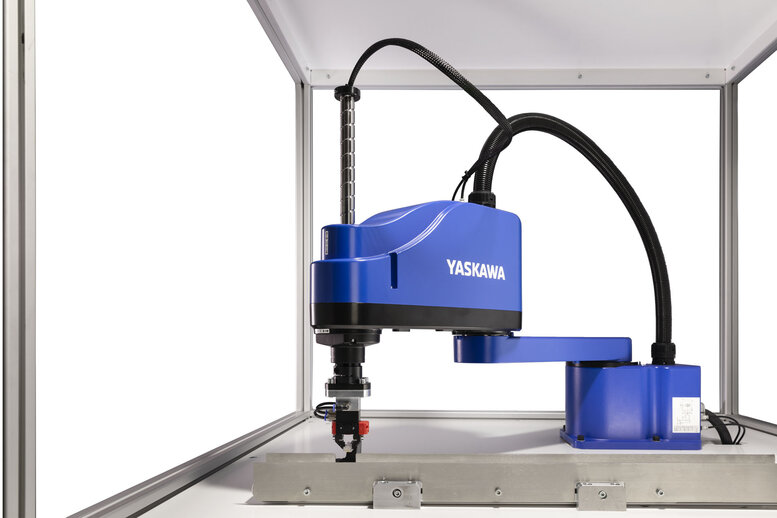

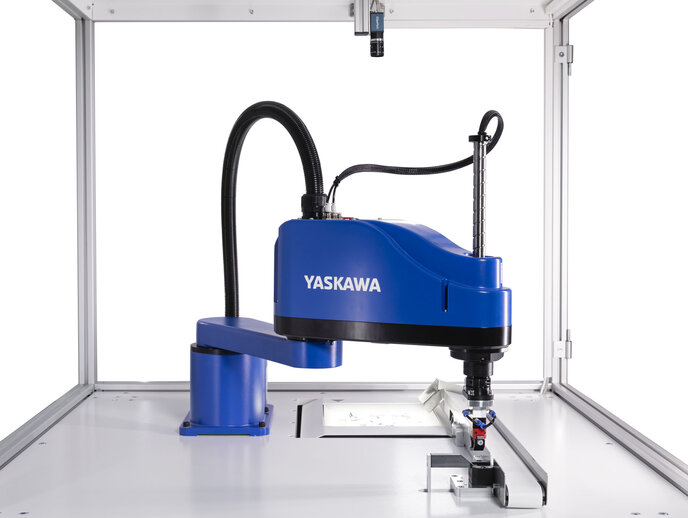

Designed for fast operating performance, the SG650 4-axis SCARA robot is ideal for increasing throughput for small part processing applications. It can handle part weights up to 6 kg in a radius of 650 mm. Highly precise and repeatable, the SG650 is well-suited for assembly and sortation processes needing short cycle times, as well as multi-process systems requiring pick-and-place capability. A compact body design with small footprint minimizes mounting space and enables easy integration with existing automation.

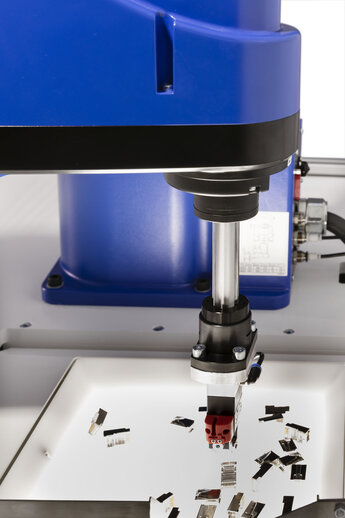

The SG650 is well suited for pick&place and smart part feeding in assembly.

product_technical_details

  • Number of Axis
  • 4
  • Payload
  • 6 kg
  • Max Working Range
  • 650 mm
  • Repeatability
  • 0.01 mm
  • Weight
  • 19 kg
  • Power Supply
  • 1 kVA
  • Maximum Speed S Axis
  • 450 °/s
  • Maximum Speed L Axis
  • 730 °/s
  • Maximum Speed U Axis
  • 1300 mm/s
  • Maximum Speed R Axis
  • 2500 °/s
  • Maximum Speed B Axis
  • x No
  • Maximum Speed T Axis
  • x No
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
downloadcenter_label_processing downloadcenter_label_filter_entire_table downloadcenter_showing _START_ – _END_ / _TOTAL_ downloadcenter_total_records downloadcenter_pagination_filtered_from _MAX_ downloadcenter_total_records downloadcenter_no_records downloadcenter_no_records First Last downloadcenter_sort_ascending downloadcenter_sort_descending

product_downloads

downloadcenter_name
Flyer Robot Scara SG650 Data sheet | English Data sheet English
Flyer Robot Scara SG650 Data sheet | German Data sheet German
SG650 2D CAD/CAE | CAD/CAE
SG650 3D CAD/CAE | CAD/CAE
Flyer Robot Scara SG650 Data sheet | French Data sheet French
