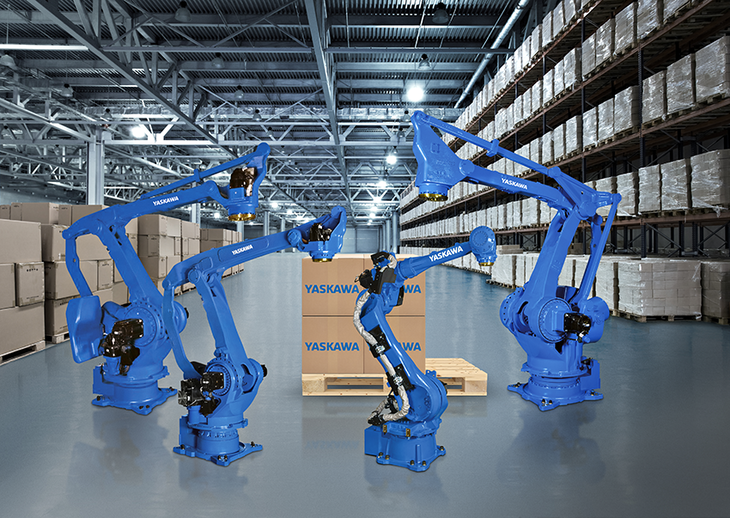

PL Series

PL500

Palletizing / Depalletizing Robot for Heavy Loads up to 500 kg

Yaskawa Ireland Robotics Yaskawa Robots Palletizing PL Series PL500

product_overview

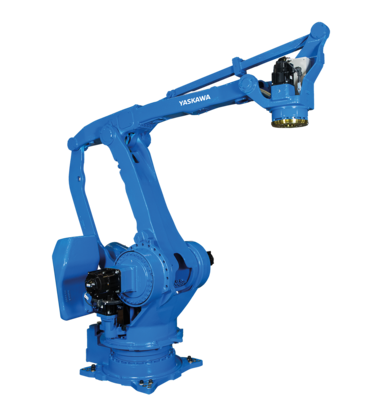

The versatile and powerful 4-axis MOTOMAN PL500 offers top performance in palletizing and depalletizing applications and many other logistical applications for end-of-line packaging and automation solutions in distribution centers.

With its impressive 500kg payload capability, this robot is capable to handle large stones and machine parts or complete product layers or even complete loaded pallets.

product_technical_details

  • Number of Axis
  • 4
  • Payload
  • 500 kg
  • Max Working Range
  • 3159 mm
  • Repeatability
  • 0.05 mm
  • Weight
  • 2390 kg
  • Power Supply
  • 8 kVA
  • Maximum Speed S Axis
  • 85 °/s
  • Maximum Speed L Axis
  • 85 °/s
  • Maximum Speed U Axis
  • 85 °/s
  • Maximum Speed R Axis
  • x No
  • Maximum Speed B Axis
  • x No
  • Maximum Speed T Axis
  • 195 °/s
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
downloadcenter_label_processing downloadcenter_label_filter_entire_table downloadcenter_showing _START_ – _END_ / _TOTAL_ downloadcenter_total_records downloadcenter_pagination_filtered_from _MAX_ downloadcenter_total_records downloadcenter_no_records downloadcenter_no_records First Last downloadcenter_sort_ascending downloadcenter_sort_descending

product_downloads

downloadcenter_name
Flyer Robot PL500 Data sheet | English Data sheet English
Flyer Robot PL500 Data sheet | German Data sheet German
PL500_2D CAD/CAE | CAD/CAE
PL500_3D CAD/CAE | CAD/CAE
Flyer Robot PL500 Data sheet | French Data sheet French
