Highest quality coupled with outstanding performance has a name: MOTOMAN
PL Series

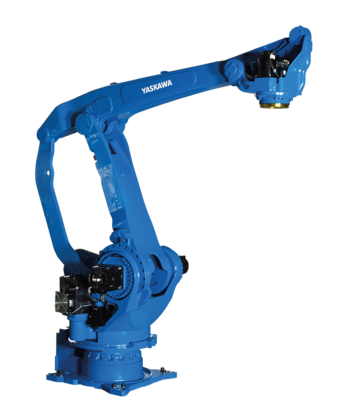

PL320
High Performance Palletizing and Handling
product_overview
With over 1400 cycles per hour, the fast and powerful 4-axis MOTOMAN PL320 robot offers top performance for box, carton and bag palletizing for end-of-line packaging and logistics applications.
The optimized kinematic structure of this robot provides even better stability and higher max. payload capacity of 320 kg compared to the predecessor model.
The superior working range with a maximum reach of 3,159 mm and an achievable stacking height of over 2,600 mm is perfect for all kinds of palletizing tasks.
product_technical_details
- Number of Axis
- 4
- Payload
- 320 kg
- Max Working Range
- 3159 mm
- Repeatability
- 0.05 mm
- Weight
- 1680 kg
- Power Supply
- 9.5 kVA
- Maximum Speed S Axis
- 120 °/s
- Maximum Speed L Axis
- 110 °/s
- Maximum Speed U Axis
- 100 °/s
- Maximum Speed T Axis
- 300 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
product_downloads
| downloadcenter_name | |||
|
Flyer Robot PL320
Palletizing & Handling with the PL-series Data sheet | English |
Data sheet | English | |
|
Flyer Robot PL320
Palettieren & Handling mit der PL-Serie Data sheet | German |
Data sheet | German | |
| PL320_2D CAD/CAE | | CAD/CAE | ||
| PL320_3D CAD/CAE | | CAD/CAE | ||
| Flyer Robot PL320 Data sheet | French | Data sheet | French |
