ME1000

ME1000

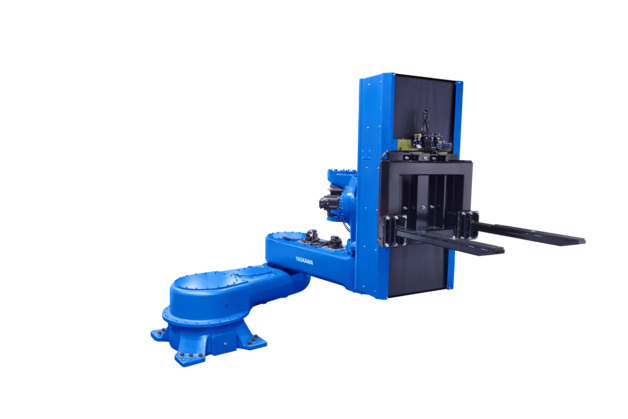

Heavy-payload horizontal articulated Robot

product_overview

The powerful MOTOMAN ME1000 is characterized by its innovative design as a 6-axis horizontal articulated robot. This compact robot has been developed specifically for the horizontal transport of heavy loads up to 1000 kg.

Compared to conventional models with a 6-axis vertical articulation, the ME1000 has a lower product mass, which results in a significant reduction of energy consumption. Its energy-saving design was awarded Japan's “Energy Conservation Grand Prize”.

This versatile robot with minimal footprint is ideal for handling and assembling heavy parts such as automotive components, battery trays for electric vehicles, as well as for handling construction material or even heavy packed pallets in logistics and e-commerce.

KEY BENEFITS

High payload and rigidity with compact dimensions
Space and energy saving due to dedicated design
Safe and accurate handling of heavy parts and components in a wide range of industries
Excellent payload-to-weight ratio

APPLICATIONS

Handling of heavy automotive components or high voltage storage systems for electric vehicles
Transfer of large castings and forgings
Handling of ship components
Handling of construction materials and pre-cast concrete parts

product_technical_details

Number of Axis
6

Payload
1000 kg

Max Working Range
2440 mm

Repeatability
0.1 mm

Weight
3250 kg

Power Supply
5 kVA

Maximum Speed S Axis
45 °/s

Maximum Speed L Axis
60 °/s

Maximum Speed R Axis
10 °/s

Maximum Speed B Axis
10 °/s

Maximum Speed T Axis
50 °/s

Mounting Options
Floor

product_downloads

downloadcenter_name
Flyer MOTOMAN ME1000 Horizontaler Knickarm-Roboter für schwere Lasten Data sheet \| German	Data sheet	German
Flyer MOTOMAN ME1000 Heavy-payload horizontal articulated Robot Data sheet \| English	Data sheet	English
MOTOMAN ME1000 2D CAD/CAE \|	CAD/CAE
MOTOMAN ME1000 3D CAD/CAE \|	CAD/CAE
