Highest quality coupled with outstanding performance has a name: MOTOMAN
GP Series

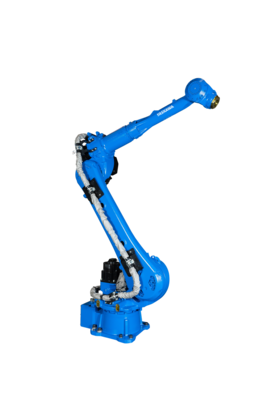

GP70L
6-Axis handling robot with 70 kg payload
product_overview
The fast and dynamic 6-axis MOTOMAN GP70L robot offers top performance for order picking as well as item, box and carton handling in the logistics industry. The most powerful robot in its class offers a huge increase in terms of efficiency and productivity for sorting and packing in intralogistics applications.
With a payload of 70 kg and an enormous reach of 2,732 mm, its slim design allows it to operate in the tightest of spaces, resulting in a high robot density. The narrow cable routing further reduces the width of the robot. The modern picking and handling robot can flexibly supplement or replace manual stations, and in combination with additional peripherals (e.g., 3D vision technology), it increase economic efficiency.
The MOTOMAN GP70L operates with powerful servo motors of the Yaskawa Sigma-7 generation, which ensure the highest accelerations with short movements for even shorter cycle times. The reduced cycle times further increase productivity. The ideal combination is with the optional Functional Safety Control (FSU) for safeguarding compact work areas, which is already integrated in the compact MOTOMAN YRC1000 high-performance controller.
product_technical_details
- Number of Axis
- 6
- Payload
- 70 kg
- Max Working Range
- 2723 mm
- Repeatability
- 0.05 mm
- Weight
- 650 kg
- Power Supply
- 5 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 123 °/s
- Maximum Speed U Axis
- 160 °/s
- Maximum Speed R Axis
- 230 °/s
- Maximum Speed B Axis
- 230 °/s
- Maximum Speed T Axis
- 350 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
