Highest quality coupled with outstanding performance has a name: MOTOMAN
GP Series

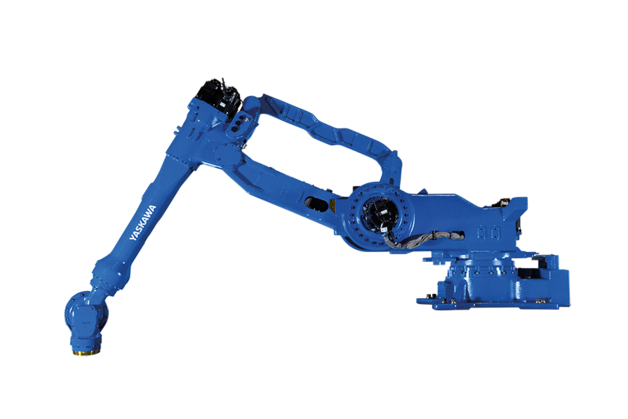

GP300R
Shelf mounted robot with 300 kg payload
product_overview
The flexible, shelf-mounted MOTOMAN GP300R robot provides extended reach of 3220 mm, a payload of 300 kg and a repeatability of +/- 0.2 mm. A streamlined upper arm provides easy access to parts in confined spaces. As being a shelf-type robot, the motion range is extended for working below the robot base level, allowing to the robot to be installed on a raised steel structure to save floor space. Latest Sigma-7 Servo Motor technology and high inertia wrist allows fast axis speed and acceleration to decrease cycle time and optimize production output.
The MOTOMAN GP300R is well suited for heavy spot welding guns and grippers in spot welding, press transfer, material handling and machine tending.
product_technical_details
- Number of Axis
- 6
- Payload
- 300 kg
- Max Working Range
- 3220 mm
- Repeatability
- 0.05 mm
- Weight
- 1530 kg
- Power Supply
- 5 kVA
- Maximum Speed S Axis
- 110 °/s
- Maximum Speed L Axis
- 95 °/s
- Maximum Speed U Axis
- 95 °/s
- Maximum Speed R Axis
- 120 °/s
- Maximum Speed B Axis
- 120 °/s
- Maximum Speed T Axis
- 190 °/s
- Mounting Options
- Shelf-Mounted
- Further Specifications
- x No
