Highest quality coupled with outstanding performance has a name: MOTOMAN
GP Series
GP280L
General Purpose 6-Axis Handling Robots
product_overview

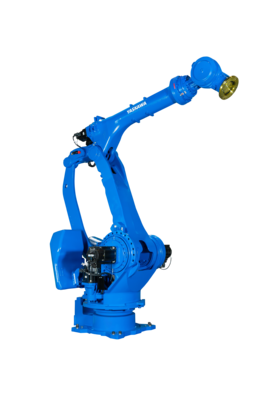

The MOTOMAN GP280L 6-axis robot is a powerful and versatile industrial robot that is ideal for a wide range of applications. The product features a high payload of 280 kg and a large working range.
The robot is an allrounder and ideal for a wide range of applications, including material handling, machine tending, assembly, and dispensing as well as palletizing tasks. It is particularly well suited for handling large workpieces, such as heavy battery modules or vehicle components in the automotive industry.
Thanks to its parallel kinematics, the robot offers high rigidity and stability when handling loads with high moments of inertia. Robust swivel bearings ensure smooth and reliable arm movement.
The GP280L is optionally available with the PLd, Category 3 »Functional Safety Unit (FSU)« for extended safety functions.
KEY BENEFITS
- Fast, flexible, and powerful
- High payload: 280 kg
- Large working range: 3,114 mm
- Parallel link design for high stability
- Heavy-duty swivel bearings for smooth arm rotation
- Advanced safety functions (PLd, Category 3 FSU available)
TYPICAL APPLICATIONS
- Material Handling
- Assembly
- Machine Tending
- Dispensing & Glueing
- Palletizing / Packaging
product_technical_details
- Number of Axis
- 6
- Payload
- 280 kg
- Max Working Range
- 3114 mm
- Repeatability
- 0.1 mm
- Weight
- 2390 kg
- Power Supply
- 7.5 kVA
- Maximum Speed S Axis
- 110 °/s
- Maximum Speed L Axis
- 90 °/s
- Maximum Speed U Axis
- 90 °/s
- Maximum Speed R Axis
- 125 °/s
- Maximum Speed B Axis
- 125 °/s
- Maximum Speed T Axis
- 205 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
