SDA Series

CSDA10F

Dual Arm Robot for Lab Automation

Yaskawa Ireland Robotics Yaskawa Robots Handling & Mounting SDA Series CSDA10F

product_overview

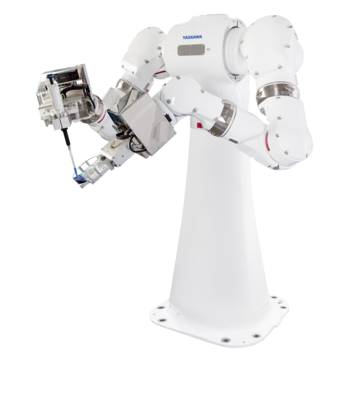

The MOTOMAN CSDA10F has a payload of 10 kg and reach of 835 mm per arm, and is designed for laboratory use.

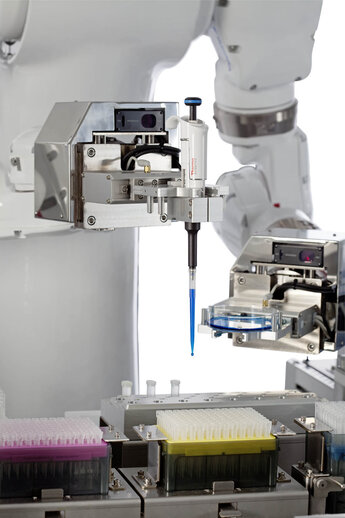

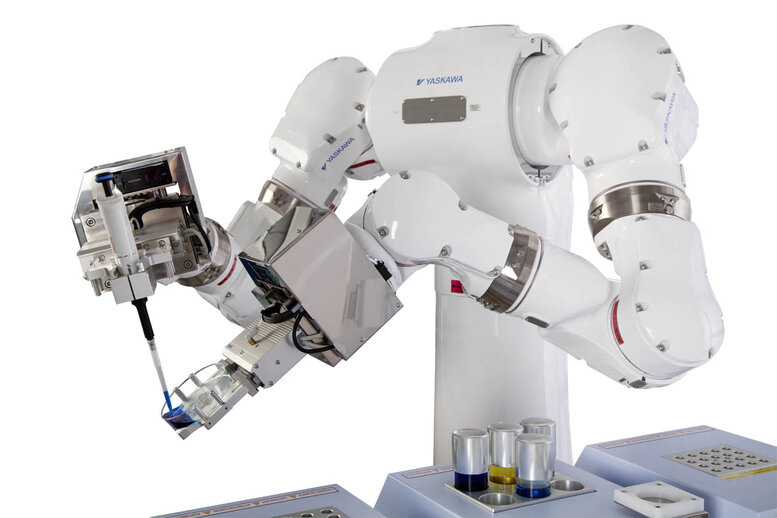

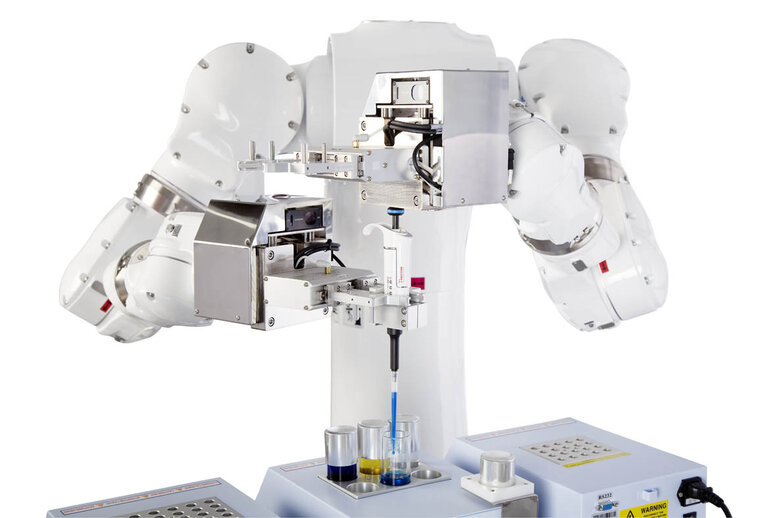

Other than pure handling done by conventional single arm robots, the MOTOMAN CSDA10F dual arm robot can really process complicated lab automation tasks like sample preparation or complex workflow protocols, even over days and nights without human intervention. Due to it's cleanroom, washdown and IP67 Design of arms and wrists, it is well suited to automate tasks in pharmaceutical, clinical diagnostics, chemical or biomedical laboratories. It's high repeatability and superb reliability opens new doors in medicine research and development.

The MOTOMAN CSDA10F can handle any existing conventional laboratory equipment in your lab. It executes protocols step by step precisely in a way as they have been designed for manual laboratory tasks - 24/7 if required, without deviations or faults. Dedicated automation equipment, e.g. liquid handling systems, is not required. This allows straight forward, simple and highly flexible automation concepts without the need to invest in expensive non-flexible automation. No matter how varied the work sequences or how often they have to be refined or modified: You can teach the robot your new ideas very quickly.





product_technical_details

  • Number of Axis
  • 15
  • Payload
  • 10 kg
  • Max Working Range
  • 720 mm
  • Repeatability
  • 0.1 mm
  • Weight
  • 220 kg
  • Power Supply
  • 2 kVA
  • Maximum Speed S Axis
  • 130 °/s
  • Maximum Speed L Axis
  • 170 °/s
  • Maximum Speed U Axis
  • 170 °/s
  • Maximum Speed R Axis
  • 200 °/s
  • Maximum Speed B Axis
  • 200 °/s
  • Maximum Speed T Axis
  • 400 °/s
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
downloadcenter_label_processing downloadcenter_label_filter_entire_table downloadcenter_showing _START_ – _END_ / _TOTAL_ downloadcenter_total_records downloadcenter_pagination_filtered_from _MAX_ downloadcenter_total_records downloadcenter_no_records downloadcenter_no_records First Last downloadcenter_sort_ascending downloadcenter_sort_descending

product_downloads

downloadcenter_name
Flyer Robot CSDA10F
Flexible Lab Automation with robot MOTOMAN CSDA10F Data sheet | English 		Data sheet English
Flyer Robot CSDA10F
Flexible Laborautomation mit Roboter MOTOMAN CSDA10 Data sheet | German 		Data sheet German
CAD for Robot Series CSDA10F
15-axis dual-arm robot, 2D data package CAD/CAE | 		CAD/CAE
CSDA10F_3D CAD/CAE | CAD/CAE

product_related_products

FS100

Phased-out Controllers

product_related_usecases

Robot-based laboratory automation at CELISCA

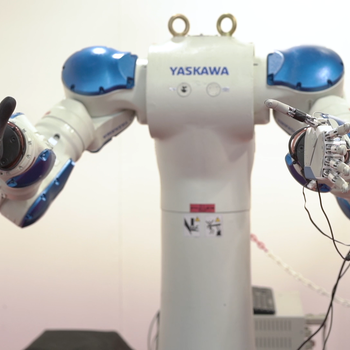

Advanced robotic manual dexterity
