Highest quality coupled with outstanding performance has a name: MOTOMAN
GP FGG Series
GP8 FGG HS
Food handling in hygienic environments
product_overview

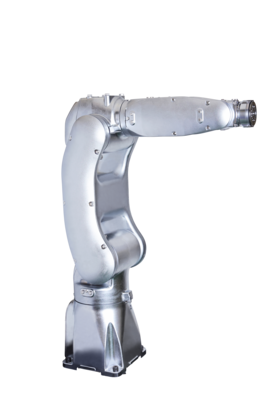

The MOTOMAN GP8 FGG HS (Food Grade Grease Hygienic Surface) is a very fast and precise 6-axis industrial robot with a payload of up to 8 kg especially for the food industry. With a reach of 727 mm and a high repeatability of ± 0.01 mm, it is ideally suited for universal handling or packaging tasks. Its modern, smooth, slim and award-winning industrial design minimizes the space required at the installation site.
The MOTOMAN GP8 FGG HS is designed with the high IP67 protection class as standard, is equipped with food-grade grease for tasks in the food industry and has an easy-to-wash surface with special anti-corrosive coating for use under aggressive environmental conditions.
- Hygienic surface
- Optimized for food handling
- Low interference contours due to optimized design
- Fast and flexible
product_technical_details
- Number of Axis
- 6
- Payload
- 8 kg
- Max Working Range
- 727 mm
- Repeatability
- 0.01 mm
- Weight
- 35 kg
- Power Supply
- 1 kVA
- Maximum Speed S Axis
- 455 °/s
- Maximum Speed L Axis
- 385 °/s
- Maximum Speed U Axis
- 520 °/s
- Maximum Speed R Axis
- 550 °/s
- Maximum Speed B Axis
- 550 °/s
- Maximum Speed T Axis
- 1000 °/s
- Mounting Options
- x No
- Further Specifications
- x No
product_downloads
| downloadcenter_name | |||
|
Flyer Robot GP8 FGG HS
Handling für Lebensmittel in hygienischem Umfeld Data sheet | German |
Data sheet | German | |
|
Flyer Robot GP8 FGG HS
Food Handling in hygienic Environments Data sheet | English |
Data sheet | English | |
|
Flyer Robot GP8 FGG HS
Manipulation de produits agroalimentaires en environnements hygiéniques Data sheet | French |
Data sheet | French | |
| GP8 FGG HS 2D CAD/CAE | | CAD/CAE | ||
| GP8 FGG HS 3D CAD/CAE | | CAD/CAE |
