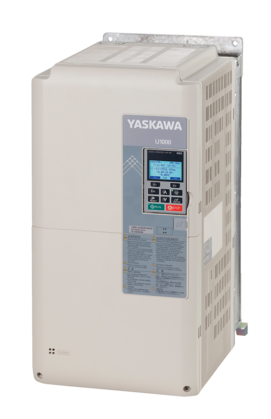

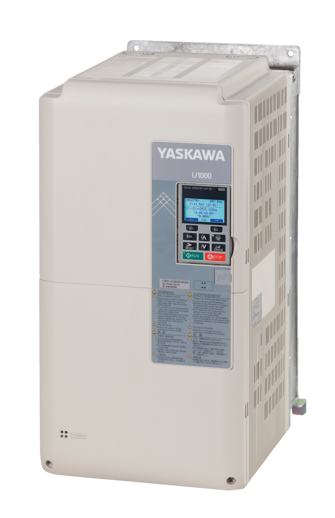

U1000 Series
CIMR-UC4E0240AAA
Low Harmonics Regenerative Matrix Converter
Overview
U1000 is the perfect match for single motor drive applications with requirements to power regeneration and low harmonics such as lifts, escalators, HVAC machinery, hoists, centrifuges, and many others.
U1000 is approved for global marine installation. Compared to 12 pulse systems the Yaskawa matrix design provides significant footprint and weight savings, keeping the THDi within the IEEE 519 limits.
- Precise control of induction and permanent motors with or without encoder
- Highly efficient AC to AC direct conversion
- Automatic motor data adjustment
- 13 language full text keypad built in
Technical Details
- Input power supply
- 400 V
- Rated output current (HD)
- 216 A
- Rated output current (ND)
- 240 A
- 50% ED Rated Output Current
- x No
- Overload Tolerance (ND)
- 120 % for 60 s
- Overload Tolerance (HD)
- 150 % for 60 s
- Max. applicable motor power (HD)
- 110 kW
- Max. applicable motor power (ND)
- 132 kW
- Input power phases
- 3-phase
- EMC filter
- ✓ Yes
- Motor type
- Permanent magnet motor, Induction motor
- Encoder
- x No
- Standards compliance
- CE, RoHS, UL, GL, UKCA
- Regenerative Capacity
- x No
- Ambient Temperature (Min)
- -10 °C
- Ambient Temperature (Max)
- 40 °C
- Ambient Temperature (Max) with Derating
- 50 °C
- Max. Humidity (non-condensing)
- 95 %
- Max. Altitude (without Derating)
- 1000 m
- Max. Altitude (with Derating)
- 3000 m
- Height
- 1132 mm
- Width
- 490 mm
- Depth
- 450 mm
- Weight
- 181 kg
- Cooling method
- Air cooling
- Enclosure
- IP00
- Environmental Specifications
- Standard
- Analog Input
- 3
- Analog Output
- 2
- Digital Input
- 8
- Digital Output
- 4
- Safety Level
- SIL3
- Performance Level
- PL e
- Torque Control
- Standard
- Braking transistor
- External
- Motor Thermal Protection
- Standard
- Max Output Frequency
- 400 Hz
