GG Series

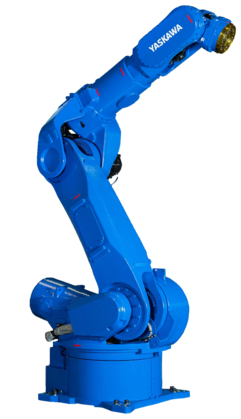

GG250
High-Rigidity Robot for Friction Stir Welding
Overview
The MOTOMAN GG250 is a 6-axis welding robot with exceptional rigidity. With a payload of 250 kg and a reach of up to 2711 mm, this industrial robot has been specially developed for use with heavy and overhanging welding equipment for Friction Stir Welding.
Friction Stir Welding is an advanced and energy efficient welding technology that offers reduced process times, excellent weld properties and cost effectiveness.
The increased diameter of the L-arm, combined with the design-optimised S-axis, ensures that the robot retains the rigidity required for high-precision applications.
KEY BENEFITS
• Highly rigid 6-axis robot
• High payload (250 kg) and large working range (2711 mm)
• Repeatability of ± 0.025 mm
• Easy integration, commissioning and maintenance
• Supplied with +SFT instruction for simplified correction
of teaching positions
• Protection class: IP54/IP65
Technical Details
- Number of Axes
- x No
- Payload
- 250 kg
- Max. Working Range
- 2711 mm
- Repeatability
- 0.03 mm
- Weight
- 1640 kg
- Power Supply
- 5 kVA
- Maximum Speed S Axis
- 80 °/s
- Maximum Speed L Axis
- 75 °/s
- Maximum Speed U Axis
- 80 °/s
- Maximum Speed R Axis
- 150 °/s
- Maximum Speed B Axis
- 150 °/s
- Maximum Speed T Axis
- 190 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
