Human Machine Interfaces

professional Panels

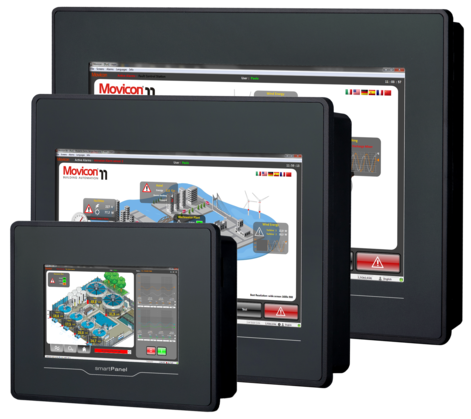

The VIPA Touch Panel family is suited for all applications in the factory, process and building automation. Due to the aluminum die-cast housing the VIPA Touch Panels are mechanically particularly robust. With the front-side IP65 protection, these devices also survive in harsh industrial environments.

The portfolio ranges from 6.5" TFT up to 12" TFT color display. The compact design allows the use of VIPA Touch Panels also in confined spaces. The panels can be operated either horizontally or vertically.

Features

• Display size: 6.5” up to 12”
• Type of display: TFT color
• Processor: XScale 800 MHz
• Interfaces: RS232, RS485, RS422, MPI, PROFIBUS-DP slave, Ethernet RJ45, USB-A, USB-B (depending on type of panel)
• Memory: already integrated, also with SD, MMC and0 CF card expandable
• Including VIPA PLCTOOL: (allows upload/download of programms from VIPA- and STEP7 based controls, reading of the diagnosis buffer, as well as start and stop of the connected CPUs without using a programming unit)
• Including the operating system Windows Embedded CE 6.0 Professional and the visualization system Movicon

Visualization system Movicon

• Editor for vector graphics with a powerful and attractive library of characters
• Extensive I/O driver library (import of variables from the PLC possible)
• Powerful alarm management
• Multilingual support
• Interference and operation data acquisition including evaluation possibility
• Archiving of process data with trend curves
• Extensive driver library
• Scalability of the project of basic systems to Movicon Scada platform
• Multilingual support
• Save and extensive user management
• Remote management for projecting and remote maintenance
• Remote access via standard VNC client possible
• Integrated Ethernet TCP/IP networking
• Integrated AWL logic (STEP5/STEP7)
• Also deployable in combination with many controllers of different manufacturers

Line Displays

Line displays are used for the operation and monitoring of process parameters in machinery, plant and buildings.

TD 03 – Text Display

The compact Text Display TD 03 shows via a backlit LCD display defined message texts. Inputs and outputs, and process parameters can be set through the membrane keys and changed. The configuration of the messages and the parameter block is performed using the TD-Wizard from VIPA. The menu can be selected in English and German. The text display is designed for use in combination with VIPA CPUs 11x, 21x, 31x, 51x and the S7-300/400 CPUs designed by Siemens.

OP 03 – Operator Panel

The operator Panel OP 03 is particularly suitable for operating and monitoring of small applications in conjunction with VIPA CPUs 11x, 21x, 31x, 51x and Siemens S7-300/400 CPUs. Up to seven OPs can be connected to a CPU and up 2 CPUs to an OP 03 via the MPI interface. For managing and processing operating notifications and data, 256 kByte user memory is available. Project planning is carried out with VIPA OP-Manager or Siemens ProTool.

CC 03 – Commander Compact

In the Commander Compact CC 03 a PLC CPU, programmable with Siemens STEP7, is integrated. Besides the 128 kByte user memory, the CPU has 16/24/32 kByte program and 24/32/40 kByte load memory (depending on the version). In addition, 16 digital inputs and outputs each are integrated. The CC 03 is expandable with up to four 100V or 200V modules (160 digital inputs/outputs, or up to 32 analog inputs/outputs respectively are supported).
